Tractive force F1 30 - 330 Newton
Progression 10 %
Piston rod Ø 6 mm, hard chrome-plated steel
Pressure pipe Ø 19 mm, black lacquered steel

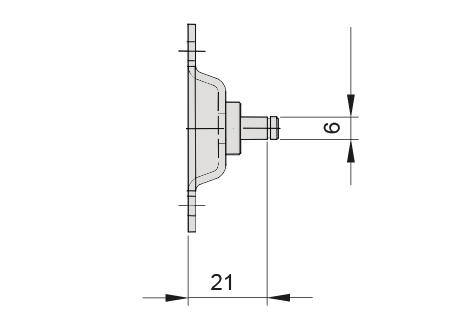

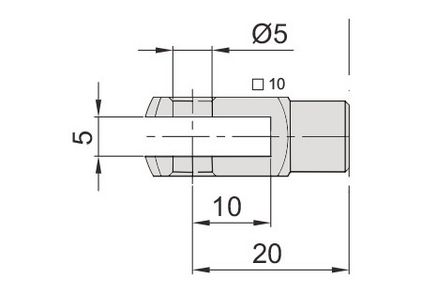

Connections Blue galvanised steel

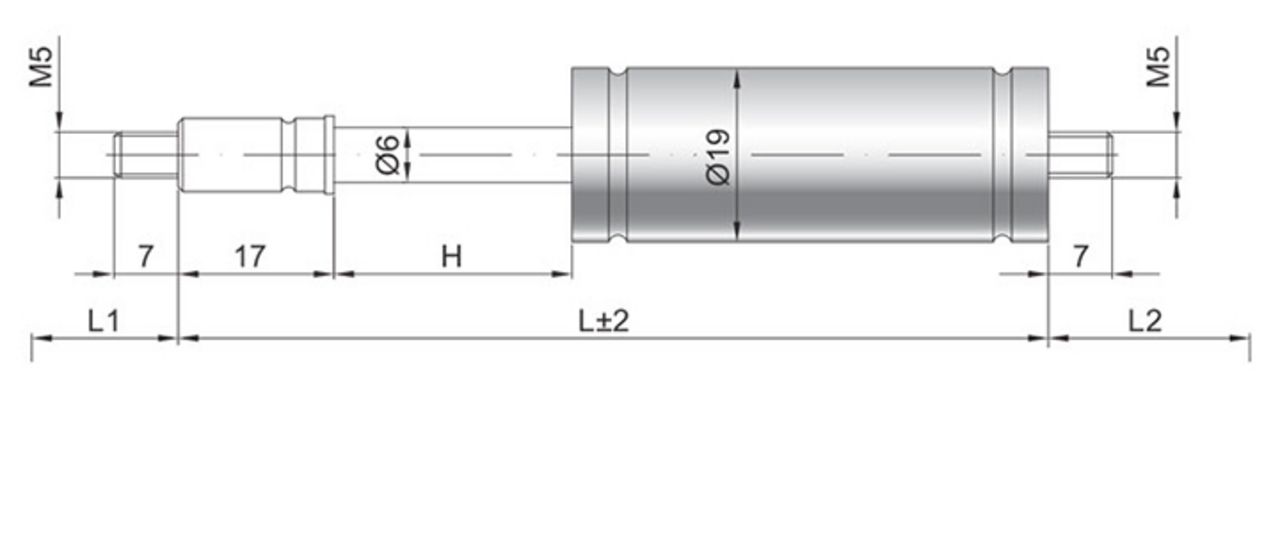

Standard strokes H (mm):

30, 50, 60, 70, 80, 100, 120, 140, 150, 180, 200, 250, 300

Default length GL

L = 2 x H + 100
GL = L + L1 + L2

Standard scope of delivery

Valve on the piston rod

Extras

Fat chamber
Protection tube
Sealing system
Low temperature version
High temperature version
